• High quantitative accuracy is ensured, as powder in the capacity measure can be fully discharged.
• The structure is not caused flushing easily.
• Moisture absorption into powder is prevented by dry air supply.
• For slow rotation of the capacity measure, wear and crushing of powder is extremely few.
• HIFLOW also have “P-type” that enables pneumatic conveying.

• Because of the scraper-type table feeder, can be accurate quantitative supply.
• No powder discharges pulsation because powder is scraped out with a scraper in this structure.
• Feeding quantity is adjustable in a wide range according to the revolution speed and penetration depth of the scraper.
• Prevents bridging through adjustable enlargement of the feeder outlet.
• Usable as a discharger when discharging powder silos, etc.
• For slow rotation of the capacity measure, wear and crushing of powder is extremely few.

• This scraper type table feeder enables high-precision quantitative feeding.
• Disassembly and assembly of the powder contact part is unnecessary tool.
• The parts to be disassembled have been made lightweight for easy washing.
• For slow rotation of the capacity measure, wear and crushing of powder is extremely few.
• Developed especially for food plants, pharmaceutical plants, and chemical plants where feeder interior needs to be cleaned.

• Feeders for granular powder with good fluidity Highly regarded especially as feeders for polymer flocculants.
• High quantitative accuracy is ensured, as powder in measure can be fully discharged.
• Moisture absorption into powder is prevented by dry air supply.
• The structure is not caused flushing easily.
• Widely used as the polymer flocculants feeders for water treatment in the plants both within Japan and overseas.
• Æ-TOP & SUNFLOW also have “P-type” that enables pneumatic conveying.
• Together with orders for feeders, we also accept orders for solution tanks.
  (Materials: SS400, SUS304, FRP)

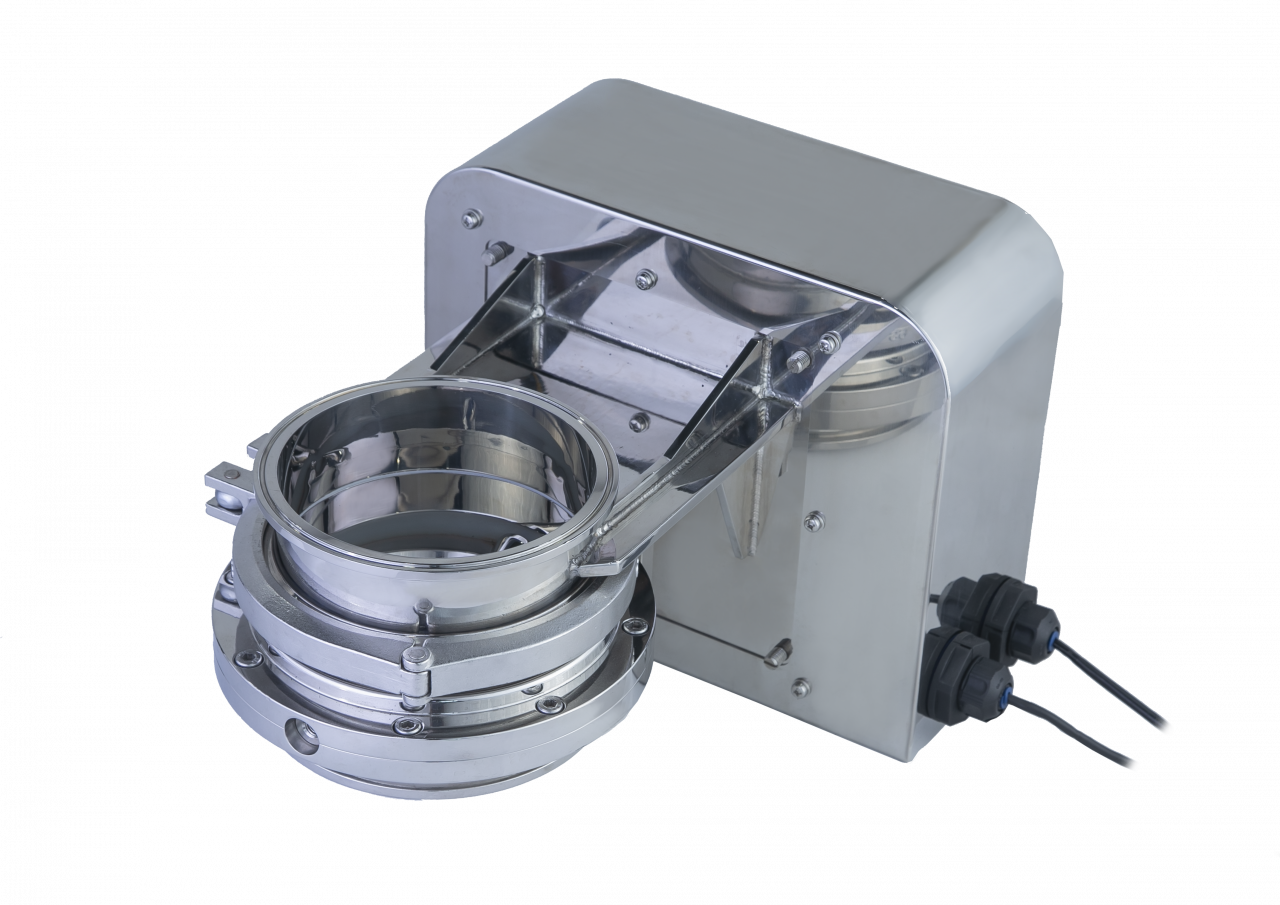

• The valve opening, swing stroke, and swing speed can be controlled arbitrarily by the motor.
• Quantitative cutting as a discharge feeder or high-precision weighing in a short time is possible.
• Powder that is difficult to discharge due to rocking operation can be discharged smoothly. It is possible to discharge powder that could not be with our conventional valve feeder.
• By adjusting each parameter of the swing operation, it is possible to control a wide range of flow rates from extremely minute to large dischage.
• By operating in combination with a vibrator type device, smoother discharge is possible.
• The simple structure of the valve + motor makes maintenance for disassembly and cleaning easy.

• With 4-20mA  input in the electric-pneumatic positioner, the butterfly valve opening position is adjustable arbitrarily within a range of 0 to 90 degrees.
• As a discharge valve of the container, making it ideal for quantitative feeding or high-precision weighing.
• The Body of valve can be disassembled without use of tools and are also easily washable.
• When used in combination with the discharge accelerator (vibrator type), discharge is made even more smooth.
• It can respond widely because the valve opening can control until wide from slight range.

• There is no valve seal between the valve and casing, so there is a clearance,
  so there is no wear.
• The valve body bearing and shaft seal have a separate structure, allowing the
  main body to be cleaned without disassembling it.
• Product types can be changed efficiently.
• Abnormalities can be monitored using the sensor on the shaft seal.
• By swinging and vibration operations, a wide range of flow control is possible
  from large quantities to very small quantities.
• High accuracy and short weighing time is possible.

• With 4-20mA input in the electric-pneumatic positioner, the damper valve opening position is arbitrarily adjustable.
• Most suitable for quantitative feeding or weight measuring.
• The Body of valve can be disassembled without use of tools and are also easily washable.
• When used in combination with the discharge accelerator (vibrator type), discharge is made even more smooth.
• It can respond widely because the valve opening can control until wide from slight range.

This is a powder discharging unit that solves the problems of dust generation and residual powder when discharging powder from a flex.

• Select inflatable seal type or clamp type for the discharge outlet of the flexible container.
• Easy to set the flexible container to FLE-CON Discharger.
• Prevent from dust generation to seal the discharge outlet.
• By the expansion-constrictive repetition of flexible container, the amount of residual powder is minimized.
• The discharge promotion hopper for flexible container can be selected.(By option)
• The discharge promotion pushers for flexible container can be selected.(By option)

• Vibration of the feeder is transmitted to the flexible hopper-conical so that occurrence of bridging, rat hole, etc. is prevented.
• There is no need to install knockers and vibrators.
• As powder can be discharged from the hopper in a stable manner, feeding accuracy of the feeder is improved.
• In the cleaning parts are hopper and trough, and can be easy disassembly cleaning as lightweight.

• Regardless of the amount of powder in the storage hopper, discharge or powder stoppage can be freely performed.
• The discharge amount can be freely set by adjusting rising height and operation time of the cone valve.
• Also useable as a feeder for measurement by controlling a wide variety of discharge amount.
• The vibrator mounted inside the cone valve can be operated at any time, thus preventing occurrence of bridging and rat holes.

• Available in a wide variety and selectable according to industry type, use condition, and type of powder used.
• We choose, design, and manufacture of the optimal model based on our accumulated data and achievements over the years.

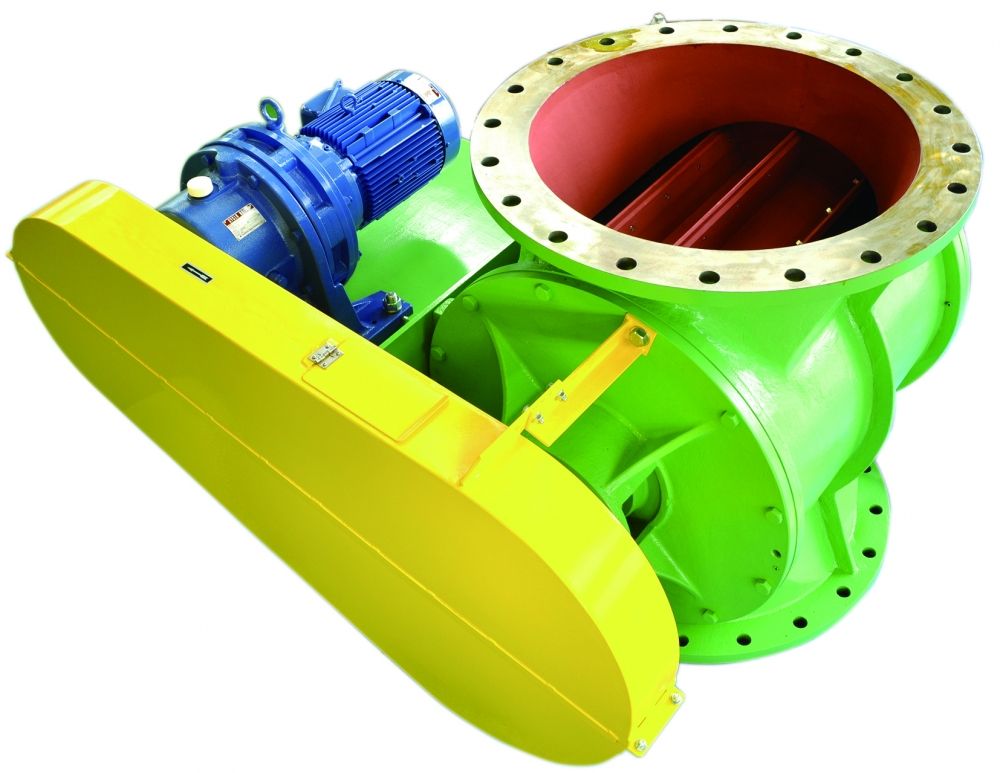

• Supply and air seal for pneumatic conveyance. Also supply and discharge from the tank・measuring・dust collector.
  They have been used throughout the plant.
• It can be used efficient and economic, the optimal model selection depending on the application.
• We also design and manufacture equipment of special specifications that cannot be supported by general purpose equipment, including use of wear-resistant materials, heat-resistance specifications for high-temperature applications, high airtight specifications, sanitary specifications, etc.

• By increasing the diameter of the discharge port of a large-sized silo and by applying vibration, complete discharge is made possible.
• By suspending the discharger with a chain, no vibration is transmitted to the silo in the upper section, thus reducing occurrence of cracks on the joint and powder clogging on the upper section.
• Available in a variety of sizes, it can support various silos, Also mountable on existing silos.

• The balance cylinder assists the manual-operating of going up and down of the suction nozzle.
• Four paper-bag holders efficiently secure the space for the suction nozzle.
• By the air blow from the tip of the paper-bag holders and the vibrator at the bag-cassette, minimized the residual powder in the bag.
• By the constitution only for air drive equipment, it also can be used in an explosion proof area.
• The suction nozzle and paper-bag holders can be easily removed and reset.
• The air blow from the tip of the suction nozzle can be selected.(By option)

• The handling of the many kind powders by the container unit is possible.
• Especially suitable for an automatic transportation system.
• Also useable as a feeder for measurement when used together with a cone valve.
• The discharge amount can be freely set by adjusting rising height and operation time of the cone valve.
• The discharge station can be shared with multiple ACCs.

This unit calculates the loss of powder discharged by the dispenser at regular intervals, and controls the calculation so that the actual result is set to the set value.

• Implemented a unique control system and a suppression function to prevent of the control amount of the disturbance.
• Up to 100 kinds of material powder's registration functions.
• Japanese and English language can be changed by the parameter.
• The lock hopper system minimizes the uncontrolled time during the supplying time.

• The very compact single device provide conveyance, storage, and weighing function.
• A wide range of high-speed measurements are available by use of integrated weighing type.
• All parts can be easy disassembly cleaning as lightweight.
• By mounting the hand lifter, it can be used in the required time and a location.
• Acquisition of replacement parts has been made easier through the use of many general-purpose parts.

• As measurement is performed based on the cumulative number of cup measurements, a wide range of weighing can be performed with a single device.
• To use the small scale of the measuring cups, can be reduced the scale interval, it is highly accurate metering.
• Stable measuring has been realized with the use of non-stick type chute and cup.
• It is easy to disassembly cleaning and is best  to switch high-variety low-volume　multi-product line.
• The operating at only air and AC100V power supply, it can be used in the required time and a location.

• As measurement is performed based on the cumulative number of cup measurements, a wide range of weighing can be performed on a single device.
• To use the small scale of the measuring cups, can be reduced the scale interval, it is highly accurate metering.
• Stable measuring has been realized through the use of non-stick type chute and cup.
• There is no disturbance or scattering of powder as the measuring cup operates in an isolated and sealed section.
